1. Model:

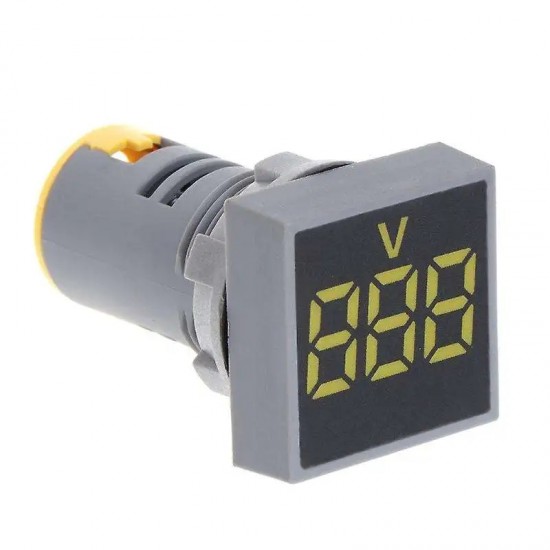

AD101-22VMS indicator light (pilot light) Voltmeter
2. Features:
Lens Material: PC
Lighting Source: LED;
Color of lamps: R-red, Y-yellow, B-blue, G-green
Volt.: 20V–500V;
Color of Lens: Red, Yellow, Blue, Green
Nature of supply: AC
Rated Temp : T90
Life of continuous working: Typically over 30,000 hours. The end of life for a lamp is not usually a sudden failure;
Reasonable price and efficient services.
3. Main Technical Parameters
Environmental Temperature: -25+55
Working under vibration frequency 2-80Hz,acceleration at 0.7g
Relative Air Humidity: ≤98%
Pollution rank is three grade and installation category is III
Protection Degree: Head IP65(OEM could be IP67)
Voltage of working frequency: 2.5kV (AC valid value), 1min
Leakage Index: CT1≥100
Frequency: AC 50-60Hz
| Type | Indicator Lights voltmeter |
| Input Voltage | 20-500V |
| Color | Red, Yellow, Blue, Green |
| mounted hole | 22mm |
| Life | ≥30,000h |
| Brightness | ≥60cd/Square Meters |
| Lamp Body Material | Plastic |
| Beam Angle | 360° |
