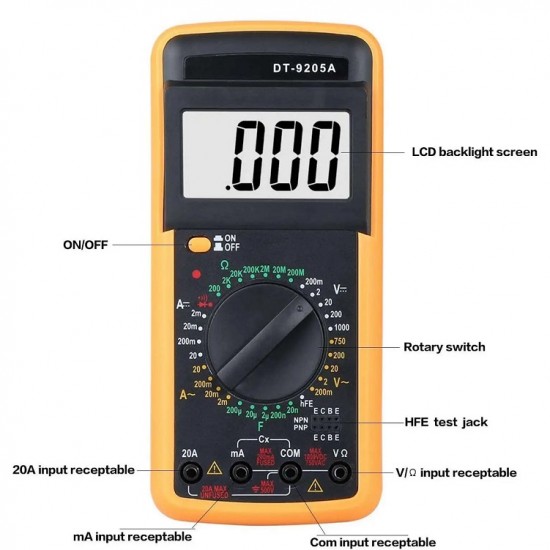

Digital Voltmeter / Multimeter DT-9205A

Digital Multimeter 9205 , can measure AC & DC voltage Also AC & DC current , Also can measure capacitance and has a spacial function like continuity tester & diode.

Features:

• One rotary switch operation
• Large 3 1/2 digit LCD display
• DC & AC Voltage, DC & AC Current, and Diode (hFE) measurement
• AC/DC Voltage measurement up to 700/1000 Volt
• DC Current measurement up to 20 Amp
• Resistance measurement up to 2000 Mega Ohm
• Capacitance measurement 2nF to 200uF
• Diode test
• Continuity Test
• Overload protection
• Soft holster for instrument protection
• Automatic polarity indication
• Low-battery indication

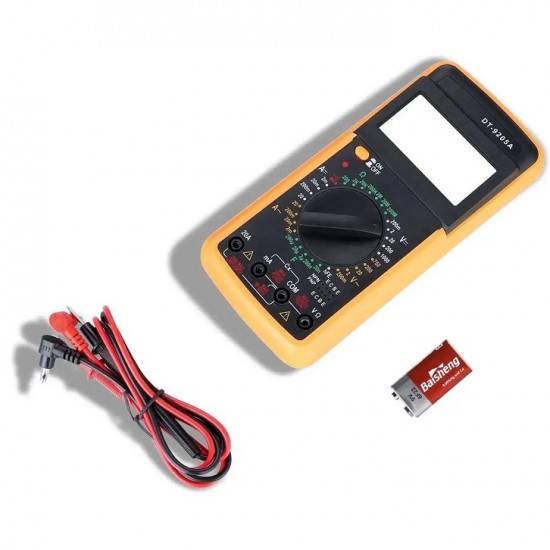

• Accessories: operation manual, test leads , Battery 9v (included)

DT-9205A technical details as below:

• Large LCD display size: 15/16″
• Power: 1x 9V battery
• Test probes: One red and one black, 1000V/15A rated (IEC1010/EN61010 CAT II), 2′ long
• Dimension: 186×86×33mm
• Weight: 415g(including battery)
